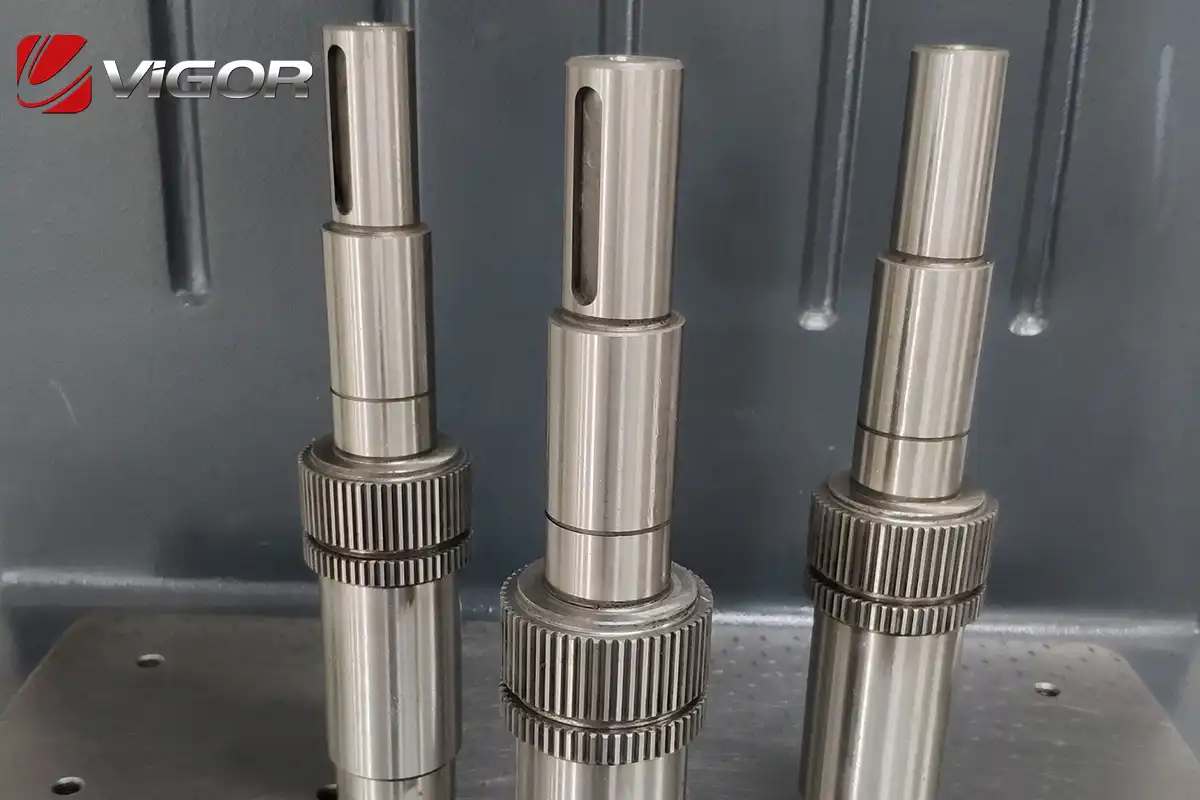

A spline shaft is a mechanical component designed to transfer torque while maintaining precise alignment between connected parts. It features a series of ridges or teeth that fit into corresponding grooves in a mating component, such as a gear, coupling, or hub. This interlocking mechanism ensures efficient power transmission, minimizes slippage, and enhances mechanical stability. Spline shafts are widely used in automotive, aerospace, and industrial machinery applications, where precision and durability are crucial. They come in various designs, including involute, straight-sided, and serrated splines, each tailored to specific performance needs. By distributing torque evenly across the contact surfaces, spline shafts reduce wear and tear, extending the lifespan of mechanical systems.

Types of Spline Shafts and Their Applications

Involute Splines: Precision and Strength

Involute splines are the most common type used in mechanical systems, especially in high-torque applications. Their curved tooth profile ensures a uniform load distribution, reducing stress concentrations and improving wear resistance. These splines are commonly found in:

- Automotive transmissions: Ensuring smooth power transfer between the engine and drivetrain.

- Industrial machinery: Providing reliable torque transmission in heavy-duty equipment.

- Aerospace components: Delivering high precision in aircraft control systems.

Straight-Sided Splines: High Load Capacity

Unlike involute splines, straight-sided splines have parallel ridges, offering a larger contact area for torque transmission. These are ideal for applications requiring:

- Heavy loads: Used in hydraulic pumps and lifting mechanisms.

- Adjustable positioning: Common in machine tools and industrial presses.

- Customizable fits: Preferred for applications requiring frequent assembly and disassembly.

Serrated Splines: Compact and High Precision

Serrated splines feature multiple small teeth arranged in a radial pattern, making them suitable for high-precision, compact applications. Their advantages include:

- Fine-tuned adjustments: Used in steering systems and precision instruments.

- High torque in small spaces: Found in robotics and medical devices.

- Minimal backlash: Ensuring accurate motion in automation systems.

How Spline Shafts Improve Mechanical Performance?

Enhanced Torque Transmission

Spline shafts efficiently transfer torque by ensuring multiple contact points between the shaft and mating component. This design:

- Prevents slippage: By engaging multiple teeth, spline shafts ensure secure connection, reducing the risk of movement or misalignment.

- Handles high torque loads: Splines are designed to manage large forces, making them ideal for demanding applications in heavy-duty machinery and engines.

- Reduces localized stress: Evenly distributed forces along the spline's length minimize concentrated wear, enhancing durability and overall performance.

Improved Alignment and Stability

Proper alignment is critical in mechanical systems to prevent excessive wear and energy loss. Spline shafts contribute to:

- Accurate positioning: Spline shafts ensure precise alignment between connected parts, facilitating smooth and synchronized motion in gear-driven systems.

- Minimized vibration: By maintaining tight connections, spline shafts reduce vibrations, leading to quieter operation and enhancing system stability.

- Easy assembly and disassembly: Spline shafts simplify the installation and removal of components, making maintenance more efficient and less time-consuming.

Resistance to Wear and Fatigue

Spline shafts are designed to withstand long-term operational stress. Their durability is enhanced by:

- High-quality materials: Spline shafts made from forged steel or hardened alloys offer superior strength, enabling them to handle demanding operational conditions.

- Surface treatments: Nitriding and carburizing processes create a tougher outer layer, improving wear resistance and extending the lifespan of the shaft.

- Optimized design: A well-thought-out design ensures even distribution of stress, minimizing the risk of fatigue and enhancing overall durability.

Manufacturing Processes of Spline Shafts

Machining: High Precision Manufacturing

Machining methods like hobbing, broaching, and milling are commonly used for spline shaft production. These processes offer:

- Tight tolerances: These machining methods ensure precise dimensions, allowing components to mesh seamlessly with minimal backlash, enhancing overall performance.

- Versatility: Hobbing, broaching, and milling can be tailored to produce a wide range of spline profiles, accommodating both standard and custom designs.

- Smooth surface finishes: By minimizing surface imperfections, these processes reduce wear and tear on mating parts, leading to longer-lasting and more efficient mechanical systems.

Cold Rolling and Forming: Strength and Efficiency

Cold rolling creates spline shafts with improved mechanical properties by:

- Enhancing material strength: Cold rolling increases tensile strength by refining the grain structure, making the spline shafts more durable and resilient under stress.

- Reducing material waste: This method is efficient in terms of material usage, as it minimizes scrap and allows for better control over material consumption.

- Providing superior surface quality: Cold rolling produces smooth, uniform surfaces, reducing the need for extra finishing steps and improving overall component performance.

Forging: Durability and High Load Capacity

Forged spline shafts are known for their exceptional strength and durability. Key benefits include:

- High resistance to impact and fatigue: Forged spline shafts are engineered to withstand heavy loads and repeated stress, making them perfect for demanding applications.

- Grain structure optimization: The forging process aligns the grain structure, increasing the shaft's toughness and ability to endure harsh conditions over time.

- Reduced defects: The forging process minimizes imperfections, ensuring a higher-quality product with greater reliability and performance in challenging environments.

Conclusion

Spline shafts are essential components in power transmission systems, offering precise torque transfer, enhanced stability, and long-term durability. Their diverse designs and manufacturing methods allow them to meet the specific needs of various industries, from automotive to aerospace. By choosing the right spline shaft type and production method, manufacturers can optimize performance, reduce maintenance costs, and improve overall mechanical efficiency.

Looking for high-quality spline shafts tailored to your needs? Contact us at info@castings-forging.com for expert guidance and customized solutions.

References

1. Norton, R. L. Machine Design: An Integrated Approach. Pearson, 2021.

2. Budynas, R. G., & Nisbett, J. K. Shigley's Mechanical Engineering Design. McGraw-Hill, 2020.

3. Childs, P. Mechanical Design Engineering Handbook. Butterworth-Heinemann, 2018.

4. Maitra, G. Handbook of Gear Design. Tata McGraw-Hill, 2017.

5. Hoffmann, E. Fundamentals of Machine Elements. CRC Press, 2016.

6. Jones, R. Engineering Materials: Properties and Applications. Elsevier, 2019.
