To reduce the noise of gear transmission, a multifaceted approach can be adopted to address various sources of noise generation. By focusing on design, materials, manufacturing, assembly, and operational aspects, significant improvements in noise reduction can be achieved. Below is an expanded discussion on each of these areas:

Improve Manufacturing and Installation Accuracy of Gears

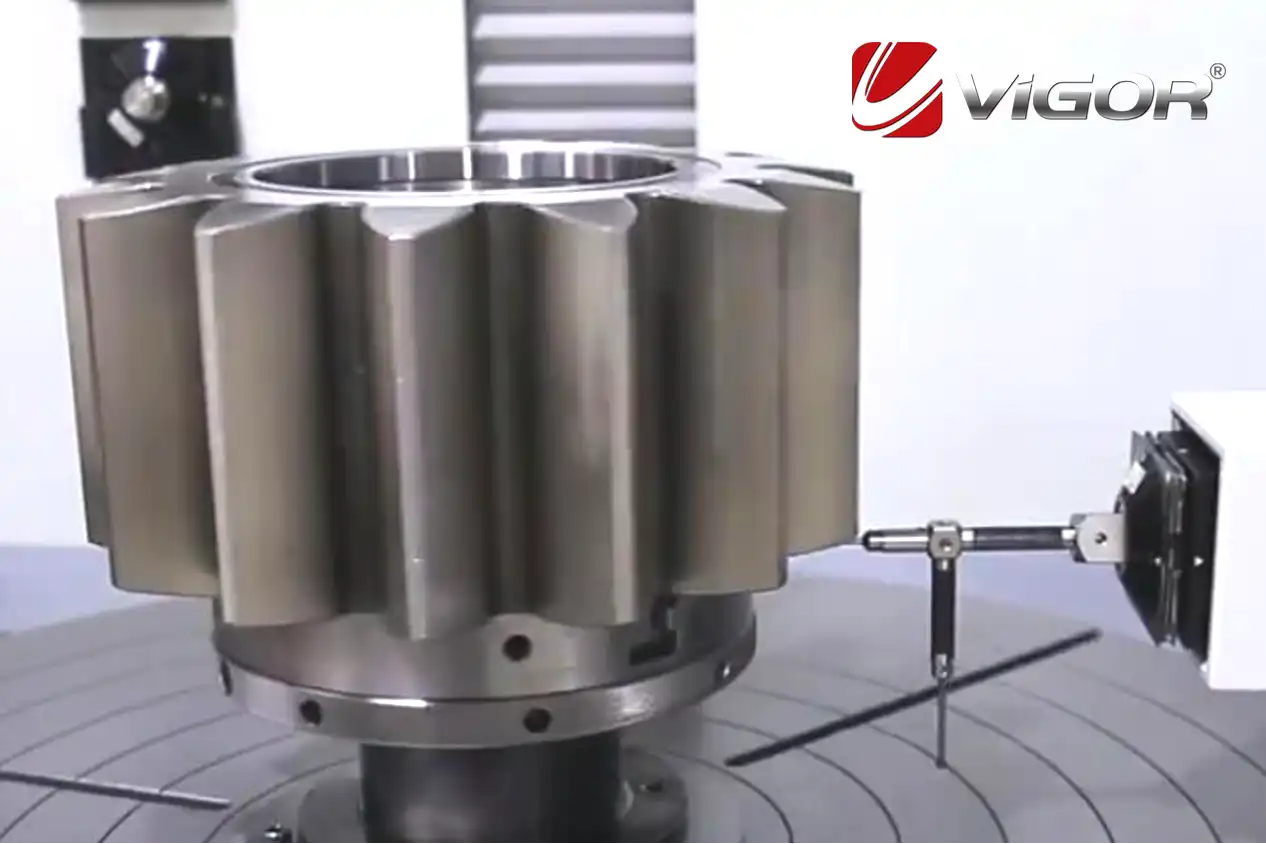

Enhancing the manufacturing accuracy of gears is crucial for minimizing errors that contribute to noise. Pitch error, tooth profile error, runout error, and tooth alignment error are common issues that can lead to increased noise levels. Employing advanced manufacturing techniques such as gear grinding, hard shaving, and electro-polishing ensures that the tooth surface and root are processed with high precision. These methods not only improve the surface finish but also reduce micro-geometric deviations, leading to smoother gear meshing.

During installation, it is equally important to maintain high assembly accuracy. Proper alignment of gears during assembly is essential to prevent misalignment, which can cause uneven loading and increased noise. Ensuring that the axes of rotation are perfectly aligned and that the gears are securely mounted can significantly reduce noise. Additionally, using precision measuring tools and fixtures during installation can help achieve the required tolerances and minimize assembly-related noise.

Optimize Gear Design

A well-designed gear system can inherently reduce noise by improving the interaction between mating gears. Several design considerations can be made to achieve this goal:

Tooth Profile Design: The choice of tooth profile plays a critical role in noise reduction. Involute tooth profiles are commonly used due to their smooth engagement characteristics. However, other optimized profiles, such as cycloidal or modified involute profiles, can further reduce impact during tooth contact. Tooth profile modifications, such as tip relief, crowned teeth, or reduced thickness at both ends, can also improve the meshing condition at the tooth ends, thereby reducing noise. These modifications help distribute the load more evenly across the tooth surface, reducing stress concentrations and minimizing vibration.

Gear Parameter Selection: Selecting appropriate gear parameters is another key factor in noise reduction. The gear module, which determines the size of the teeth, should be chosen carefully. Larger modules can enhance the load-carrying capacity of the gears, which in turn reduces the likelihood of excessive wear and noise. Additionally, optimizing the meshing angle of the gears can ensure a more uniform contact ratio, which helps to reduce noise. For example, increasing the helix angle in helical gears can improve the overlap ratio and provide smoother operation.

Overlap Ratio Design: The overlap ratio, which refers to the number of teeth in simultaneous contact, has a direct impact on noise levels. Increasing the overlap ratio can be achieved by adding more teeth, reducing the pressure angle, or increasing the tooth height. A higher overlap ratio means that more teeth are engaged at any given time, which distributes the load more evenly and reduces the peak loads on individual teeth. This results in lower noise levels and improved performance.

Select High-Quality Materials and Heat Treatment

The choice of materials and heat treatment processes can significantly influence the noise characteristics of gears. High-quality materials such as alloy steel or powder metallurgy offer superior wear resistance and noise reduction properties. These materials are designed to withstand high stresses and maintain their integrity over time, which helps to minimize noise caused by wear or deformation.

Heat treatment processes, such as carburizing and quenching, tempering, and nitriding, can further enhance the hardness and wear resistance of gears. Hardened gears are less likely to develop surface defects or wear irregularities, both of which can contribute to noise. Additionally, heat treatment can improve the fatigue strength of the gears, ensuring that they operate more reliably under varying loads and speeds.

Use Appropriate Lubrication

Adequate lubrication is essential for reducing friction and wear between mating gear surfaces, which in turn helps to minimize noise. High-viscosity lubricants are particularly effective in reducing noise because they form a thicker film between the teeth, preventing metal-to-metal contact. It is important to ensure that the lubrication system is properly maintained to avoid both excessive and insufficient lubrication. Over-lubrication can lead to churning losses and increased heat generation, while under-lubrication can result in premature wear and increased noise. Regular maintenance and monitoring of the lubrication system can help ensure optimal performance and noise reduction.

Enhance Gear Vibration Resistance

Reducing vibrations in the gear system is another effective way to lower noise levels. Modified gears, such as those with optimized tooth profiles or special damping treatments, can help absorb vibrations and reduce noise. Improving the stiffness of the tooth meshing can also contribute to better vibration resistance. This can be achieved by increasing the tooth width or shaft diameter, which enhances the overall structural rigidity of the gear system. Additionally, incorporating vibration-damping materials or designs into the gearbox housing can further reduce noise by isolating the source of vibration from the surrounding environment.

Other Measures

Several additional measures can be taken to further reduce gear noise:

Remove Burrs and Avoid Impacts: After gear processing, it is important to remove any burrs or sharp edges that could cause noise during tooth meshing. Care should also be taken during transportation and handling to avoid impacts that could damage the gears or introduce misalignments, leading to increased noise.

Use High-Stiffness Gears: Increasing the stiffness of the gears can help reduce noise by minimizing deflections and vibrations. This can be achieved by increasing the tooth width or shaft diameter, which enhances the overall rigidity of the gear system. Strengthening the gearbox housing can also increase the overall stiffness, contributing to better noise reduction.

Adjust Load and Speed: Reducing the rotational speed and load on the gears can have a significant impact on noise levels. Lower speeds and lighter loads result in less stress on the gears, reducing the likelihood of noise-generating factors such as chatter or resonance.

Conduct Noise Testing and Optimization: Performing detailed noise testing can help identify specific sources of noise within the gear system. Based on the test results, adjustments can be made to the gear design, lubrication system, or gearbox structure to further reduce noise. Continuous monitoring and optimization of the system can ensure that noise levels remain within acceptable limits over time.

In conclusion

Reducing gear transmission noise requires a comprehensive and integrated approach that addresses multiple aspects of design, materials, manufacturing, assembly, and operation. By carefully considering each of these factors and implementing appropriate measures, significant improvements in noise reduction can be achieved, leading to quieter and more reliable gear systems.
