The production process and technical key points of the reducer housing mainly include the following aspects:

Production process

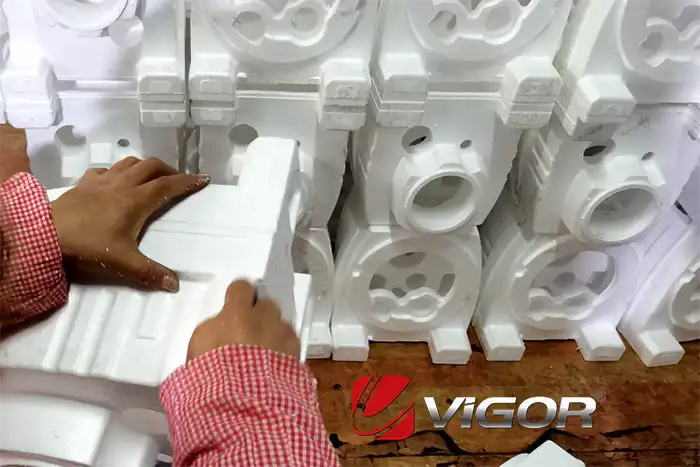

Casting process:Casting is one of the important processes in the production of reducer housings, especially for those with complex shapes and large sizes. During the casting process, parameters such as casting temperature, pouring speed, and cooling time need to be strictly controlled to ensure the quality and performance of the housing. Specifically, the selection of casting temperature should take into account the melting point and fluidity of the material; too high or too low a temperature will affect the quality of the casting. The control of pouring speed directly relates to the density and surface quality of the casting interior; too fast a speed may cause porosity and slag inclusion, while too slow may result in cold laps. The length of cooling time affects the crystalline structure and stress distribution of the casting, and needs to be optimized based on the specific material and casting structure. Through high-quality casting processes, uniform-structured and mechanically sound shell blanks can be obtained, laying a solid foundation for subsequent processing.

Welding Process: For some large or structurally complex reducer housings, the welding process is indispensable. During the welding process, it is essential to ensure the quality and strength of the weld seams and avoid welding defects. Therefore, welders need to have excellent skills and rich experience and strictly follow the welding process specifications. For instance, choosing the appropriate welding materials, controlling the welding current and voltage, and ensuring a clean welding environment are all key factors in ensuring welding quality. At the same time, strict welding quality inspections, such as ultrasonic testing and radiographic testing, are also necessary to ensure the reliability of the weld seams. These inspection methods can promptly detect and repair potential welding defects, thereby guaranteeing the overall performance of the housing.

Precision Machining Process: Precision machining is a crucial step in the production of reducer housings. Through mechanical processing, the raw housing can be transformed into a high-precision finished product that meets design requirements. During the machining process, advanced processing equipment and tools, such as CNC machining centers, must be used to ensure the dimensional accuracy and surface quality of the housing. CNC machining centers feature high precision and efficiency, enabling the accurate processing of complex surfaces. Additionally, attention should be paid to optimizing the machining process and arranging the processing sequence rationally to minimize processing deformation and errors. For instance, rough machining should be carried out first to remove most of the material, followed by finish machining to ensure dimensional accuracy and surface finish. Moreover, cooling and lubrication during the machining process are also indispensable. Appropriate cooling and lubrication can effectively enhance processing efficiency and surface quality.

Technical Points

Selection of raw materials: The quality of raw materials directly affects the performance and service life of the reducer housing. Therefore, strict control must be exercised in the selection of raw materials, and high-quality materials that meet national and industry standards must be chosen. Commonly used materials include gray cast iron, ductile iron, and aluminum alloy, each with its specific performance characteristics. The selection should be based on the usage environment and performance requirements of the housing. Additionally, raw materials must undergo strict inspection and testing to ensure that their chemical composition, mechanical properties, and other indicators meet the requirements. Through methods such as spectral analysis and mechanical property testing, the quality of raw materials can be comprehensively evaluated to ensure they meet the performance demands of the housing during the production process.

Quality Control: Quality control runs through the entire production process of reducer housings. In each stage, such as casting, welding, and machining, it is necessary to strengthen the monitoring and management of quality. By establishing a strict quality inspection system and conducting inspections and tests at every stage, it is ensured that the products meet quality standards. For instance, during the casting process, visual inspection, dimensional measurement, and internal defect detection of the castings are required; during the welding process, visual inspection and internal flaw detection of the weld seams are necessary; and during the machining process, strict control over dimensional accuracy and surface quality is essential. Additionally, advanced quality control methods and technologies, such as Statistical Process Control (SPC), can be adopted to further enhance product quality and production efficiency. SPC, by monitoring and analyzing data in real-time during the production process, can promptly identify and correct deviations, ensuring the stability and consistency of product quality.

Heat Treatment and Surface Treatment: During the production process of the reducer housing, heat treatment is required to enhance the strength and hardness of the material. The selection of heat treatment processes and the setting of parameters need to be optimized based on the specific material and usage requirements. Common heat treatment methods include annealing, normalizing, quenching, and tempering, etc. Through reasonable heat treatment processes, the mechanical properties and microstructure of the material can be significantly improved. At the same time, stress relief treatment is also necessary for the processed housing to eliminate residual stress. Common methods include annealing and vibration aging, etc. In addition, to protect the surface of the housing and improve its service life and appearance quality, special surface treatment technologies such as anti-corrosion and anti-rust are also required. For example, surface treatment methods such as painting, galvanizing, and phosphating can effectively prevent the housing from corrosion and wear during use, thereby extending its service life.

In summary, the production process and technical key points of the reducer housing involve multiple aspects, including casting, welding, precision machining, as well as raw material selection, quality control, and heat treatment and surface treatment, etc. Each link must be strictly operated and managed in accordance with the norms. Only by comprehensively mastering these technologies and key points can high-quality and high-performance reducer housings be produced. This not only requires the professional knowledge and skills of production personnel, but also requires enterprises to establish a complete quality management system and advanced production equipment to ensure that each production link can meet the expected quality standards.
