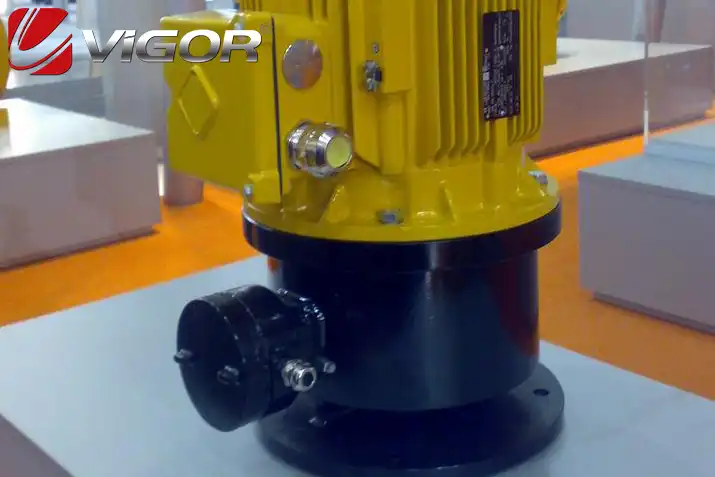

The manufacturing process behind motor brake housing is a highly specialized and precise operation that requires advanced techniques to ensure safety, durability, and performance. Brake motor housings - often used in explosion-proof or flame-proof motors - are crucial components that protect the internal brake system from external environmental factors, such as heat, pressure, and potentially hazardous conditions. The process of producing these housings typically involves resin sand casting, a method that ensures high-quality, durable parts. This article delves into how motor brake housing is manufactured, the necessary steps involved, and why selecting the right method is essential for optimizing performance and efficiency.

Understanding the Resin Sand Casting Process

What is Resin Sand Casting?

Resin sand casting is a molding process used widely in the production of brake motor housings and other large, intricate components. In this method, sand is mixed with resin binders to form a mold that shapes the brake motor housing. The resin bond allows for highly detailed and complex shapes, which is ideal for creating the intricate structure of a brake motor housing. After the mold is formed, molten metal - typically cast iron, aluminum, or steel - is poured into the mold, filling the cavity and solidifying into the final component.

This method is particularly advantageous for explosion-proof and flame-proof motors, as it allows for the production of robust, defect-free components that can withstand high stress and harsh environmental conditions. The resin sand casting process also enables manufacturers to meet tight tolerances, ensuring that each brake motor housing meets the precise specifications required for safety and performance.

Key Steps in the Resin Sand Casting Process

- Pattern Creation: The first step involves creating a pattern in the shape of the desired brake motor housing. This pattern acts as a template for forming the mold. Patterns are typically made from wood, metal, or plastic.

- Mold Preparation: Once the pattern is complete, the sand is mixed with resin and packed around the pattern to form the mold. The resin helps the sand adhere together, forming a strong mold cavity.

- Pouring Molten Metal: After the mold has been prepared and cured, molten metal is poured into the mold cavity. The metal fills the space, taking the shape of the final brake motor housing.

- Cooling and Finishing: Once the metal has cooled and solidified, the mold is broken away, revealing the brake motor housing. The part is then cleaned, inspected, and finished to meet the required specifications.

Advantages of Resin Sand Casting for Brake Motor Housing

Resin sand casting offers several advantages for manufacturing brake motor housings. First, it allows for the production of high-precision parts with complex geometries. Second, the process is cost-effective for producing medium to large quantities of motor housings. Lastly, the use of resin sand ensures that the molds are strong and durable, reducing the risk of defects and ensuring the integrity of the final product.

The Importance of Quality Control in Motor Brake Housing Production

Risk Management and Defect Prevention

Producing high-quality motor brake housings requires a meticulous focus on quality control throughout the entire manufacturing process. Brake motor housings are critical safety components, particularly in flame-proof and explosion-proof motors. Any defects or weaknesses in the housing could compromise the motor's ability to operate safely in hazardous environments.

At VIGOR INNO-TECH, we understand the importance of defect prevention. Our extensive experience in castings and forgings allows us to identify key risk areas during production and implement measures to mitigate these risks. For instance, shrinkage, cracking, and porosity are common issues in casting processes. However, with careful analysis and control of the resin sand casting process, these issues can be minimized. By ensuring that each step in the process is tightly controlled - from pattern-making to metal pouring to final inspection - we reduce the likelihood of defects and ensure a product that performs reliably under extreme conditions.

Structural Analysis and Process Design

Another critical aspect of producing high-performance brake motor housings is conducting thorough structural analysis and process design. Before production begins, engineers at VIGOR INNO-TECH analyze the part's structure to determine the best production method. This analysis helps optimize the housing's strength, durability, and performance. For example, certain parts of the housing may need to be thicker or reinforced to handle higher stress loads, while other areas might need special treatment to improve corrosion resistance or heat dissipation.

By designing the manufacturing process around the specific requirements of the brake motor housing, we can ensure that the final product not only meets but exceeds the performance standards needed for explosion-proof and flame-proof motor applications.

Continuous Improvement and Quality Assurance

VIGOR INNO-TECH has built a reputation for continuous improvement and full-process quality control. We believe that every step in the production process offers opportunities for improvement. Whether it's refining the resin sand mixture to improve mold strength or implementing new inspection techniques to detect defects earlier, we are committed to delivering the highest-quality brake motor housings.

Our team conducts rigorous testing and inspections at every stage of production, from raw material selection to final product delivery. This dedication to quality ensures that the brake motor housing you receive is not only free from defects but also optimized for performance, safety, and longevity in harsh operating conditions.

Customization in Brake Motor Housing Manufacturing

Tailoring Solutions to Meet Specific Needs

One of the key strengths of VIGOR INNO-TECH is our ability to provide customized solutions for our customers. Brake motor housings often need to be tailored to meet specific requirements, such as unique size specifications, material compositions, or operational environments. We work closely with our clients to understand their unique needs and develop a production plan that meets those needs effectively.

For instance, some customers may require brake motor housings that are designed to withstand extreme temperatures, while others may need housings that are resistant to corrosive environments. By leveraging our 18+ years of experience and our close collaboration with a high-quality supply chain, we can offer a wide range of customization options, from material selection to special treatments that enhance the durability and performance of the housing.

Integrated Supply Chain for Seamless Delivery

Our integrated supply chain allows us to deliver high-quality brake motor housings quickly and efficiently. By partnering with trusted suppliers, we ensure that all materials and components used in the production process meet the highest standards of quality. This integration not only speeds up production times but also allows us to offer competitive pricing without sacrificing quality.

Fast and Easy Access to Spare Parts

In addition to providing customized brake motor housings, VIGOR INNO-TECH also offers a range of spare parts and services to support our customers. Our streamlined supply chain ensures that you can quickly and easily obtain the spare parts you need to keep your motors running smoothly. Whether you need replacement housings, bolts, or other components, we provide fast, reliable delivery to minimize downtime and keep your operations efficient.

Conclusion

The manufacturing process behind motor brake housing is a complex, highly specialized operation that demands precision, quality control, and customization. Using resin sand casting, VIGOR INNO-TECH produces high-performance brake motor housings designed to withstand the most demanding environments. By focusing on quality at every stage of production and offering tailored solutions to meet specific customer needs, we ensure that each motor brake housing delivers exceptional performance and long-term reliability.

For more information on how VIGOR INNO-TECH can help you with your brake motor housing needs, contact us at: info@castings-forging.com.

References

1. "Casting Design and Performance" by ASM International

2. "Principles of Metal Casting" by Richard W. Heine, Carl R. Loper, and Philip C. Rosenthal

3. "Foundry Technology" by Peter Beeley

4. "Metal Casting: A Sand Casting Manual for the Small Foundry" by Stephen Chastain

5. "Engineering Materials: Properties and Selection" by Kenneth G. Budinski and Michael K. Budinski

6. "Die Casting: An Analytical Approach" by William Andres
