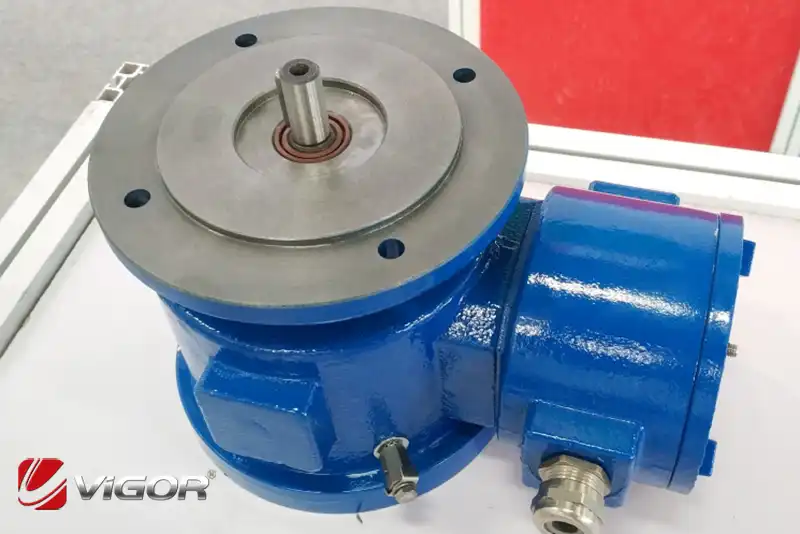

Electric motor brakes can be classified into various types based on their working principles and application scenarios, each with its own unique characteristics. The following are some common types of electric motor brakes and their features:

DC electromagnetic brake: It generates a magnetic field by applying electricity to attract or release the brake pads, achieving rapid stopping. When power is cut off, a spring or other mechanical device will automatically apply braking force. This type of brake has the characteristics of small size, lightweight, compact structure, and convenient operation. Due to its fast response speed, it is widely used in automated equipment that requires precise control, such as CNC machine tools and packaging machinery. In addition, the maintenance of DC electromagnetic brakes is relatively simple and they have a long service life, thus being widely recognized and used in industrial production.

AC electromagnetic brake: Similar to DC electromagnetic brakes, but powered by AC power. It is typically used in applications that require frequent start/stop operations. In the de-energized state, the friction surfaces are held together by the force of an internal spring, maintaining a stationary state; when energized, the electromagnetic force overcomes the spring force to release the brake. It is particularly suitable for safety stop functions, ensuring the motor stops even in the event of a power failure. Due to its stable performance and high reliability, AC electromagnetic brakes are often used in equipment with extremely high safety requirements, such as elevators and cranes.

Hydraulic brake: It uses liquid pressure to activate the brake components, capable of providing a powerful braking torque and suitable for heavy equipment or places requiring large torque braking. The advantages of hydraulic brakes lie in their large and stable braking torque, and their ability to work stably in high-temperature and high-pressure environments. They are widely used in heavy industrial fields such as mining machinery and ship propulsion systems. Their complex hydraulic systems require regular maintenance to ensure the stability and reliability of the braking effect.

Pneumatic brake: It uses compressed air as the power source and achieves braking by pushing the piston through the cylinder. This type of brake is often used in situations where a large braking power is required and the environmental conditions allow for the arrangement of a pneumatic system. Pneumatic brakes have the advantages of fast response, large braking torque, and easy operation, and are widely used in the braking systems of automobiles, trains and other means of transportation. However, its disadvantage is that it requires a compressed air system, which increases the complexity of the equipment and maintenance costs.

Mechanical brakes: These include braking methods controlled by simple mechanisms such as manual pull rods and levers. Although they are not commonly found in modern motors with high levels of automation, they still have applications in certain specific fields. Mechanical brakes have a simple structure, high reliability, and low maintenance costs. They are particularly suitable for situations where braking precision is not a critical requirement, such as in the renovation and maintenance of some older equipment.

Dynamic brake (or regenerative brake): Mainly applied in electric vehicles and other fields, it converts kinetic energy into electrical energy and feeds it back to the power grid or battery pack, achieving energy recovery while providing a deceleration effect. This braking method not only improves energy utilization efficiency but also reduces the wear of the braking system and extends the service life of the equipment. Dynamic brakes have been widely used in modern electric vehicles and hybrid vehicles and are one of the important technologies for the future development of green transportation.

Magnetic powder brake: It brakes by utilizing the internal force generated when magnetic powder is magnetized. It is small in size, light in weight, has low excitation power, and the braking torque is independent of the rotational speed of the rotating part. It is mainly used for braking (with adjustable braking torque), precise positioning, test loading, tension control, etc. Magnetic powder brakes have the advantages of fast response speed, stable braking torque, and no mechanical wear. They are widely used in industries such as printing, textile, and packaging that require precise control.

Magnetic eddy current brake: Based on the principle of electromagnetic induction, when a conductor moves in a magnetic field, eddy currents are generated, which in turn form a resistance moment. Such brakes do not require physical contact, have a long service life and low maintenance requirements, are robust and durable, and have a wide adjustment range. However, their efficiency is low at low speeds, and when the temperature rises, heat dissipation measures must be taken. Magnetic eddy current brakes are often used in high-speed trains, wind turbine generators and other applications that require high-power braking.

Disc brake: Similar to the disc brake on a car, it is driven by hydraulic or pneumatic pressure to clamp the caliper onto the rotating disc fixed on the shaft, thereby generating braking force. It has a compact structure, uniform wear of the brake pads, and the braking torque is independent of the rotation direction. It has good heat dissipation and is particularly suitable for applications with high compactness requirements. Disc brakes have been widely used in modern automobiles, motorcycles and other vehicles, and their efficient heat dissipation performance and stable braking effect have been widely recognized by users.

Block brake: It has a simple and reliable structure, average heat dissipation, the brake shoes have relatively sufficient and uniform clearance, and adjustment is relatively convenient. For the straight brake arm structure, the braking torque is independent of the rotation direction of the brake shaft, and the brake shaft is not subject to bending stress. However, the wrap angle and braking torque are small, manufacturing is more complex than belt brakes, the lever system is complex, and the overall dimensions are larger. Block brakes are the most widely used and are mainly applied in machinery with frequent operations and larger installation spaces, such as in lifting and transportation, metallurgical machinery, etc.

Belt brake: It has a simple structure, a large wrap angle, and a large braking torque. However, the brake wheel shaft is subjected to a relatively large bending force, and the specific pressure and wear of the brake belt are uneven. It has poor heat dissipation and is suitable for braking in large machines and compact requirements, such as machine tools, mobile cranes, and winches. Due to its large braking torque and simple structure, the belt brake is still widely used in some old equipment and simple machinery.

Internal expanding shoe brake: It consists of two built-in brake shoes that radially press against the brake drum outward to generate braking torque. It has a compact structure, good heat dissipation, and is easy to seal. It is mostly of the normally open type and is often used in situations where installation space is limited. It is widely applied in the braking systems of wheeled cranes and various vehicles (such as automobiles, tractors, etc.). Due to its efficient braking performance and compact structural design, the internal expanding shoe brake holds an important position in vehicle braking systems.

The selection of an appropriate brake depends on specific application requirements, load characteristics, space constraints, and cost considerations, among other factors. In practical applications, it is sometimes necessary to combine two or more types of brakes to achieve the best results. For instance, in some high-performance industrial equipment, both hydraulic brakes and electromagnetic brakes may be used simultaneously to achieve both rapid response and high-torque braking effects. Through scientific and reasonable selection and combination, the advantages of various types of brakes can be maximized to ensure the safety, stability, and efficient operation of the equipment.
